MW-O20

Sideloader

Sideloader

MW-O20

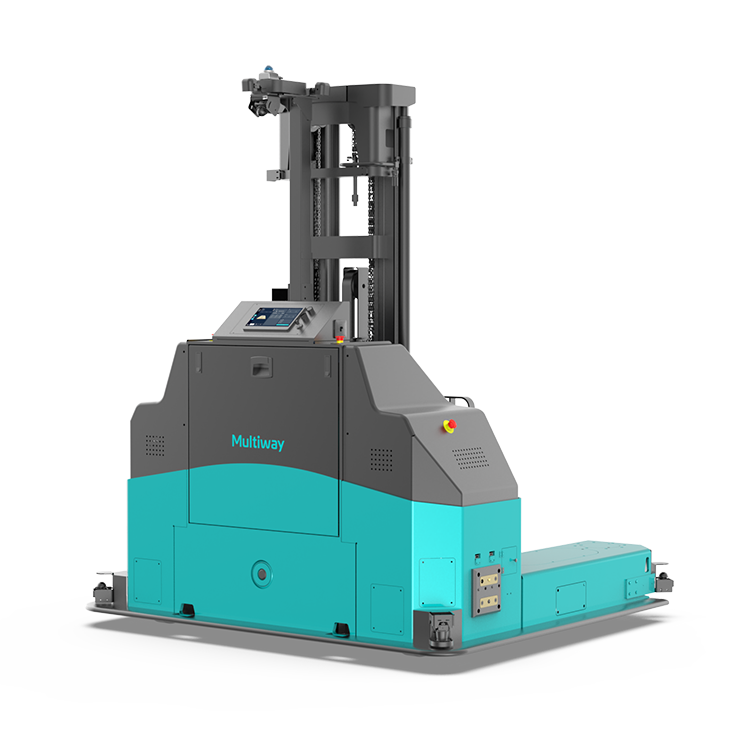

Sideloader Forklift MW-O20 is widely used in ground handling and high-position loading/unloading in multiple scenarios,like high-density and VNA (Very Narrow Aisle)storage. Its biggest feature is that the fork extends from the side, and allows barrier-free operation in very narrow aisle, maximizing aisle space savings; With a load capacity of up to 2000 kg, a lifting height of up to 5000 mm,high precision of ±10mm, MW-20 can ensure the safety and stability of high-position stacking and loading/unloading, greatly improving the storage capacity rate

Rated Load(kg):2000Max Lifting Height(mm):5000

MW-O20

Sideloader

Sideloader

MW-O20

Sideloader Forklift MW-O20 is widely used in ground handling and high-position loading/unloading in multiple scenarios,like high-density and VNA (Very Narrow Aisle)storage. Its biggest feature is that the fork extends from the side, and allows barrier-free operation in very narrow aisle, maximizing aisle space savings; With a load capacity of up to 2000 kg, a lifting height of up to 5000 mm,high precision of ±10mm, MW-20 can ensure the safety and stability of high-position stacking and loading/unloading, greatly improving the storage capacity rate

Rated Load(kg):2000Max Lifting Height(mm):5000

Navigation

Communication

Basic Specifications

Movement Specifications

Safety Protection

Fork Features

Battery Specifications

Visual Functions

Product

Sideloader MW-O20

Standard Optional

Navigation

Laser

Standard

Reflector

Optional

Laser+Reflector

Optional

Communication

Wi-Fi

Standard

5G

Optional

Optical Communication

Optional

Basic Specifications

Rated Load(kg)

2000

Turning Radius(mm)

1530

Maximum Lifting Height (mm)

5000

Load Capacity at Maximum Lifting Height (kg)

900

Weight (kg)

2960~3160

Dimensions L×W×H (mm)

2380x2110x(2350~3444)

Movement Specifications

Driving Features

Omnidirectiona

Driving Speed (m/s)

1.5~1.38

Positioning Precision (mm)

±5

Cross-Groove Capability (mm)

≤30

Safety Protection

Manual/Auto

Standard

Path Deviation Protection, Positioning Fault Protection

Standard

Component Fault Protection, Communication Fault Protection

Standard

Bottom Obstacle Avoidance Radar

Standard

Stereo Obstacle Avoidance

Standard

Fork Head Anti-Collision Detection

Standard

Anti-Collision Strip

Standard

Emergency Stop Button

Standard

Sound & Light (Warning)

Standard

Position Lamp

Standard

HMI

Standard

Fork Features

Goods Presence Detection

Standard

Battery Specifications

Charging Mode

Auto/Manual

Battery Type (Standard)

Lithium Iron Phosphate

Standard Capacity (Ah)

200Ah

Discharge Rate/Runtime (h)

6-8h

Charging Pile Specififications

24V100A

Visual Functions

Pallet Pose Identifification

Standard

On-Fork Goods Appearance Detection

Optional

Visual Inventory

Optional

High-bay Detection

Barcode/RFID Identifification

Optional
